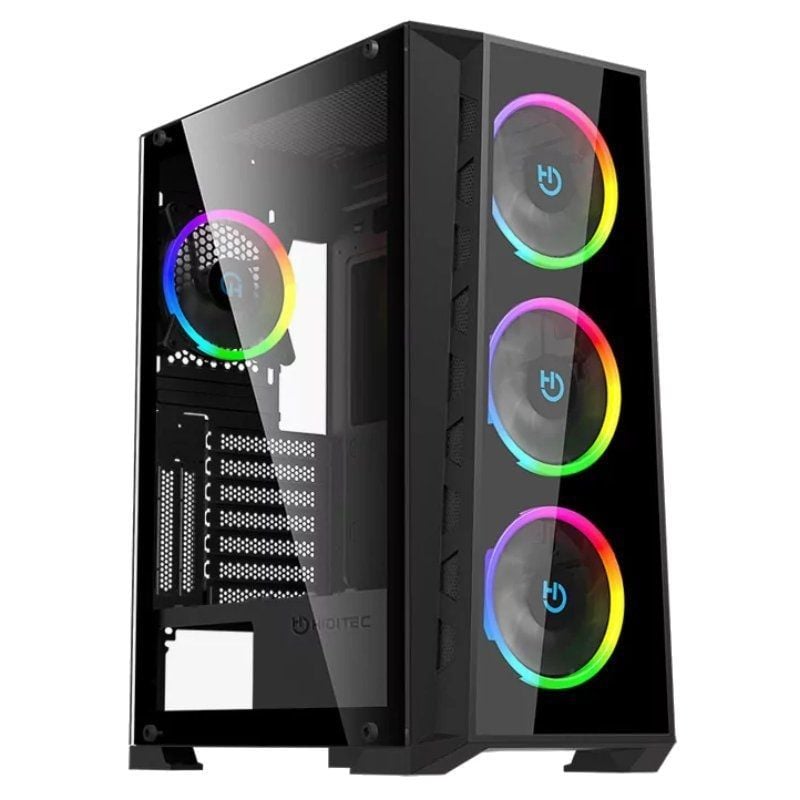

Hiditec MH12 GLASS Gaming Semi Tower Case

Hiditec MH12 GLASS Gaming Semitower Box

The MH12 is a robust chassis with a design that adapts to any configuration, supporting E-ATX, ATX, and Micro ATX form factors to accommodate any high-performance setup, as well as powerful cooling capabilities. On the top, there is a high-speed USB Type-C connection plus USB 3.0, as well as the lighting selector.

Stylish and elegant design

The MH12 is a robust chassis with a design that adapts to any configuration, supporting E-ATX, ATX, and Micro ATX form factors, therefore supporting any high-performance setup, as well as powerful cooling capabilities.

Compatible with large form factor graphics cards up to 330mm and coolers with a maximum height of 160mm.

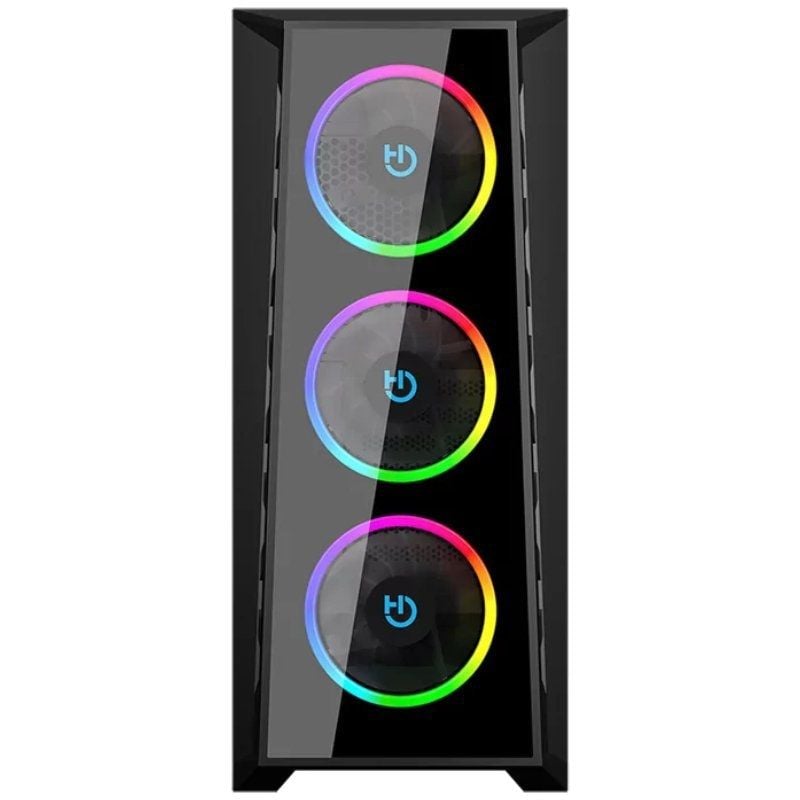

Front panel with USB Type-C

The front panel design with side vents makes it much more efficient and greatly helps to maintain an ideal temperature inside the unit.

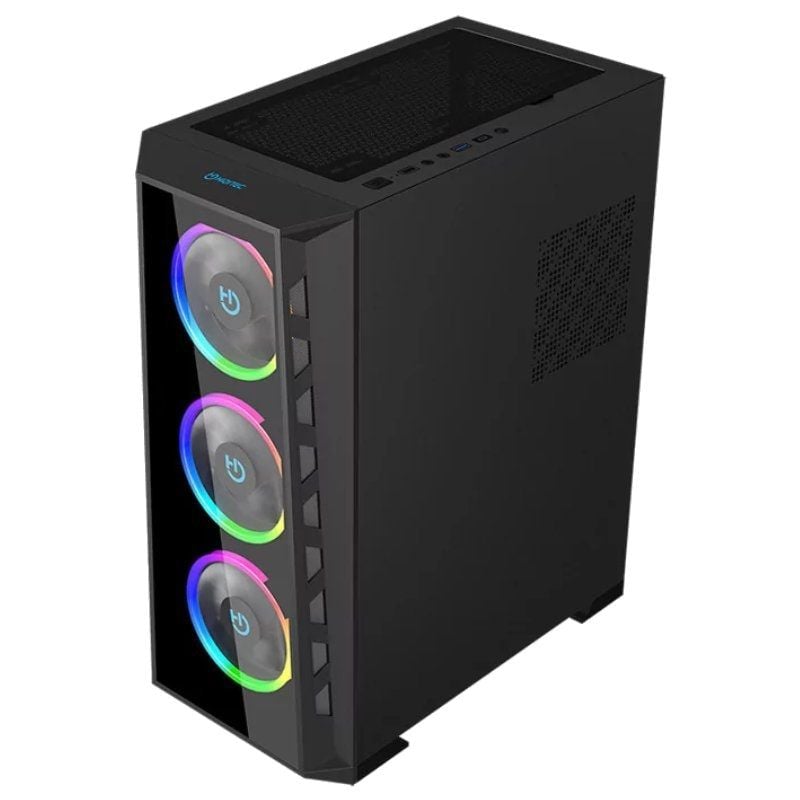

At the top, you have a high-speed USB Type-C connection in addition to USB 3.0, as well as the lighting selector.

Professional refrigeration system

The MH12 is equipped with a cooling system and sufficient expansion capacity to maintain any professional setup at an ideal temperature.

It comes standard with four ARGB fans controlled by an internal controller that can be synchronized with the motherboard and, in turn, with the entire configuration, and you can also install up to eight fans in the chassis to fully meet the needs of any setup.

If you prefer liquid cooling, it supports 360mm at the front, 260mm at the top, and 120mm at the rear.

It has dust filters to keep the inside of the equipment cleaner and more efficient.

Superior capacity

Designed for high-performance setups, thanks to its spacious interior and 27mm cable management system, allowing for organized and efficient installation.

It supports the installation of E-ATX, ATX, Micro ATX, and ITX motherboards, as well as large form factor graphics cards up to 330mm, and coolers with a maximum height of 160mm.

Its storage capacity is modular, allowing you to adapt to each configuration by installing up to four SSD drives, in addition to two HDD drives inside the chassis.

Specifications

• Dimensions
• 395 x 210 x 475 mm (L x W x H)
• Weight
• 6000 grams
• Compatible with liquid cooling.
• Yes
• Form factor
• E-ATX
• Front of the chassis
• Tempered glass
• Chassis sides
• Tempered glass - SECC
• Chassis power supply
• ATX
• Baseplate
• E-ATX - ATX - Micro ATX - ITX
• Front I/O ports
• 1 x USB 3.1 Type-C, 1 x USB 3.0, 1 x USB 2.0, 1 x audio input/output
• Bays 3.5
• 2
• Bays 2.5
• 4
• PCI
• 7
• Front fans
• 3 x 120mm LED ARGB
• Top fans
• 2 x 120mm (Optional)
• Rear fan
• 1 x 120mm ARGB LED
• Side fans
• 1 x 120mm (Optional)
• Bottom fans
• 2 x 120mm LED ARGB
• 2 x 120mm (Optional)
• Side fans
• 1 x 120mm (Optional)
• Side fans
• 1 x 120mm (Optional)
• Lower fans
• 2 x 120mm (Optional)
• Maximum height of the CPU cooler
• 160mm
• Maximum GPU length
• 330mm
• Dust filters
• Yes
• Fan connection
• 4-pin 12V connector + 3-pin 5V ARGB connector
• Certifications
• CE, FCC, RoHS
• Radiator support: Front
• 360mm / 240mm / 120mm
• Radiator support: Top
• 240mm / 120mm
• Radiator support: Rear
• 120mm
• Cable management
• 27mm
