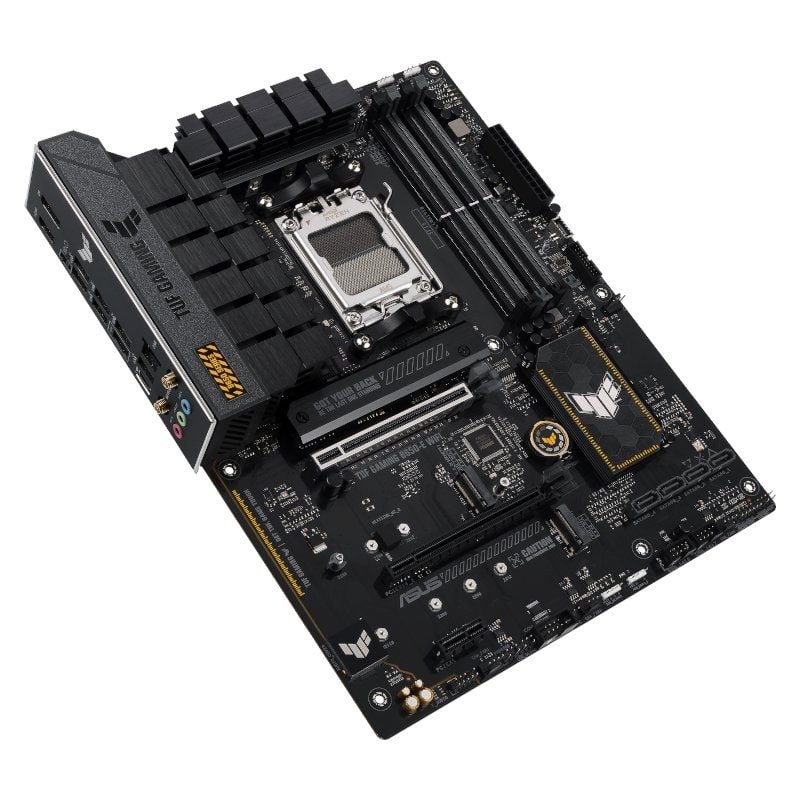

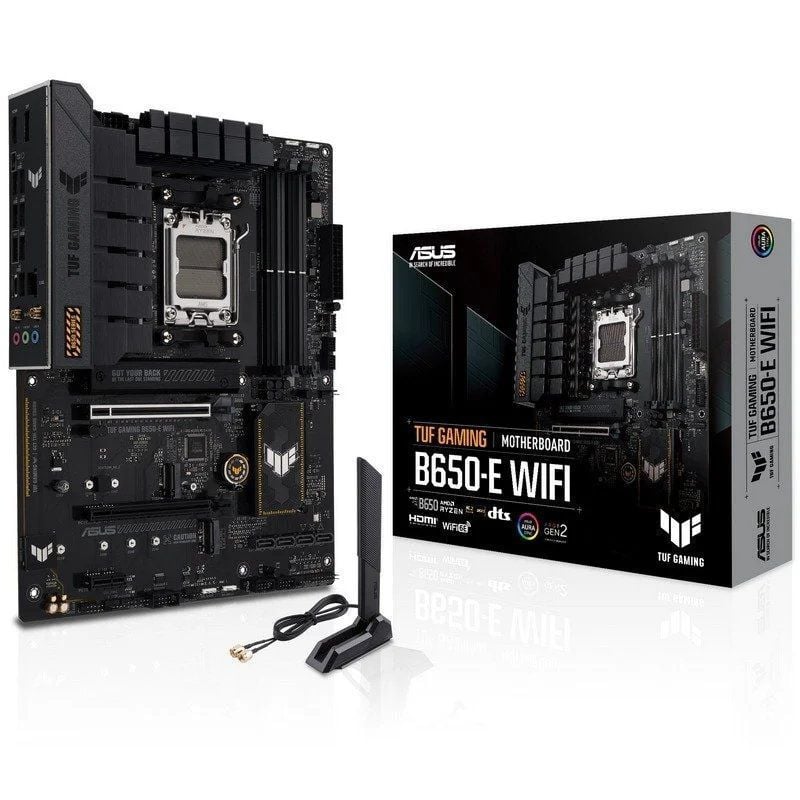

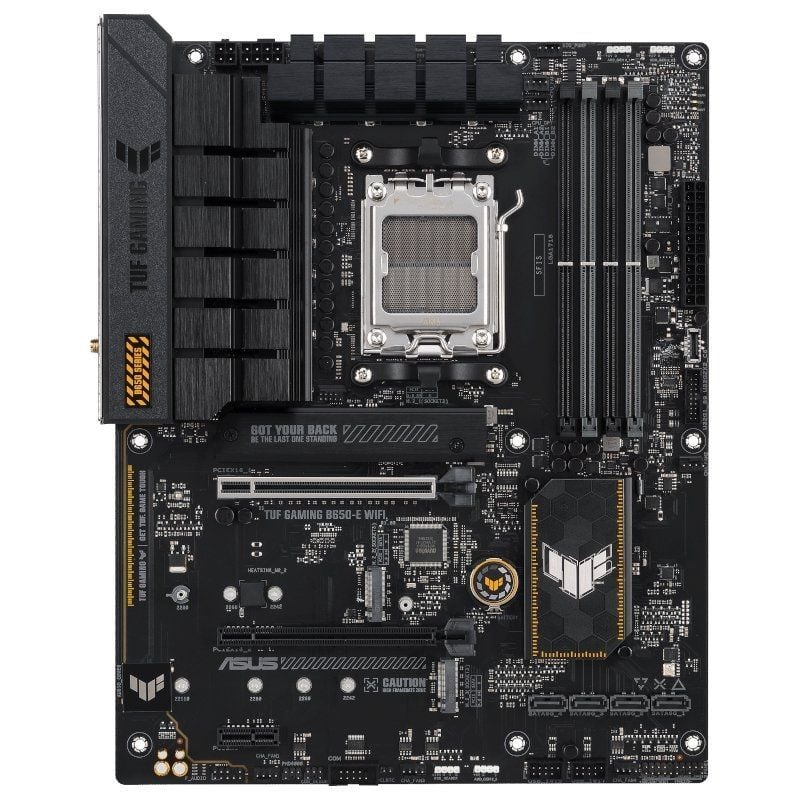

Asus TUF GAMING B650-e WIFI Motherboard / Socket AM5

TUF Gaming B650-E WiFi

The ASUS TUF GAMING B650-E WIFI motherboard takes all the essentials of the latest AM5 socket for AMD Ryzen™ desktop processors and combines them with gaming-ready features and proven durability. Designed with military-grade components, an enhanced power solution, and a comprehensive cooling system, this motherboard exceeds expectations with solid and stable performance for marathon gaming sessions. TUF GAMING motherboards also undergo rigorous endurance testing to ensure they can withstand conditions where others might fail. Aesthetically, this model incorporates geometric design elements and a robust raw color to reflect the reliability and stability that defines the TUF GAMING series.

Intelligent Control

Comprehensive controls form the foundation of the ASUS TUF GAMING series. The TUF GAMING B650 motherboard includes flexible tools to adjust every aspect of your system, allowing performance tuning to perfectly match how you work to maximize productivity.

CPU performance boost

AMD's Precision Boost Overdrive (PBO) increases the CPU's current and voltage budget to opportunistically boost performance. By aggressively adjusting PBO parameters, AMD's algorithm can leverage the motherboard's robust power solution to further increase performance.

SOLID ROCK PERFORMANCE

With enhanced power delivery and comprehensive cooling options to power the latest AMD CPUs, plus support for faster memory and storage, TUF GAMING B650 motherboards are the perfect foundation for your next high-core AMD battle rig.

Equipped power stages

The 8(60A)+2(60A) power stages are each rated to handle 60 amps, combining MOSFETs and high- and low-side controllers in a single package to deliver power, efficiency, and stable performance for all compatible AMD processors.

IMPERSIVE GAMING

TUF GAMING B650 motherboards offer a high-performance, feature-rich gaming package, with ultra-fast networking for smoother online gaming, crystal-clear audio with positional cues for FPS games, and integrated RGB lighting that syncs with connected gear to personalize your gaming atmosphere.

Specifications

• Model
• TUF GAMING B650-E WIFI
• CPU
• AMD Socket AM5 for AMD Ryzen™ 7000 and 8000 series desktop processors*
• *Check www.asus.com for the CPU support list.
• Chipset
• AMD B650
• Memory
• 4 x DIMM, max. 192GB, DDR5
• 8000+(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000 (OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 ECC and non-ECC memory, without buffer memory*
• Dual-channel memory architecture
• Supports extended AMD profiles for overclocking (EXPO™)
• OptiMem II
• *Supported memory types, data rate (speed), and number of DRAM modules vary depending on CPU and memory configuration; for more information, please refer to www.asus.com for the memory compatibility list.
• ** DDR5 memory without buffer and without ECC supports the On-Die ECC function
• Graphics
• 1 x DisplayPort*
• 1 x HDMI® port**
• * Supports a maximum of 8K@60Hz as specified in DisplayPort 1.4.
• ** Supports 4K@60Hz as specified in HDMI 2.1.
• *** VGA resolution support depends on the resolution of the processor or graphics card.
• Expansion slots
• AMD Ryzen™ 7000 Series Desktop Processors*
• 1 x PCIe 4.0/3.0 x16
• AMD Ryzen™ 8000 Series Desktop Processors*
• 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
• AMD B650 Chipset
• 1 x PCIe 4.0/3.0 x16 Slot (supports x1 mode)
• 1 x PCIe 4.0/3.0 x1 slot
• * Please refer to the PCIe bifurcation table on the support website (https://www.asus.com/support/FAQ/1037507/).
• **Specifications vary depending on the CPU type.
• To ensure compatibility with your installed device, please refer to https://www.asus.com/support/ for a list of supported peripherals.
• Storage
• Full support for 3 M.2 slots and 4 SATA 6Gb/s ports.
• AMD Ryzen 7000 Series Desktop Processors
• M. 2_Slot_1 (M key), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
• M. 2 Slot_2 (M key), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• AMD Ryzen 8000 Series Desktop Processors
• M.21 (M-Key) slot, type 2242/2260/2280 (compatible with PCIe 4.0 x4 mode)
• M.2_2 (M-Key) slot, type 2242/2260/2280 (compatible with PCIe 4.0 x4/x2 mode)** Slot for AMD B650 chipset
• M. 2_3 (M-Key), type 2242/2260/2280/22110 (compatible with PCIe 4.0 x4 mode)
• 4 x 6Gb/s SATA ports
• *AMD RAIDXpert2 technology supports PCIe RAID 0/1/10 and SATA RAID 0/1/10.
• **Specifications vary depending on the CPU type.
• Ethernet
• 1 x Realtek 2.5Gb Ethernet
• TUF LANGuard
• Wireless and Bluetooth
• Wi-Fi 6E
• Wi-Fi 6E 2x2 (802.11 a/b/g/n/ac/ax)
• Supports 2.4/5/6 GHz frequency band*
• Bluetooth® v5.3**
• *The 6 GHz Wi-Fi 6E standard may vary between countries.
• **The Bluetooth version may vary; please refer to the Wi-Fi module manufacturer's website for the latest specifications.
• USB
• Back USB (8 ports in total)
• 2 x 10 Gbps USB ports (1 Type-A + 1 USB Type-C®)
• 3 x 5 Gbps USB ports (3 Type A)
• 3 x USB 2.0 ports (3 x Type-A)
• Front USB (7 ports in total)
• 1 x 20 Gbps USB connector (USB Type-C® compatible)
• 1 x 5 Gbps USB connector(s) compatible with 2 additional 5 Gbps USB ports
• 2 x USB connector(s) Support(s) 2.0 4 additional USB 2.0 ports
• Audio
• High-definition audio codec with Realtek 7.1 surround sound*
• Supports: connector detection, multi-streaming, front panel connector remapping.
• Supports playback up to 24-bit/192 kHz
• Audio features
• Audio shielding
• Premium Audio Capacitors
• Dedicated audio PCB layers
• Audio coverage
• * Due to HDA ​​bandwidth limitations, 32-bit/192 kHz is not compatible with 7.1 surround sound audio.
• **A chassis with an HD audio module on the front panel is required to support 7.1 surround sound output.**

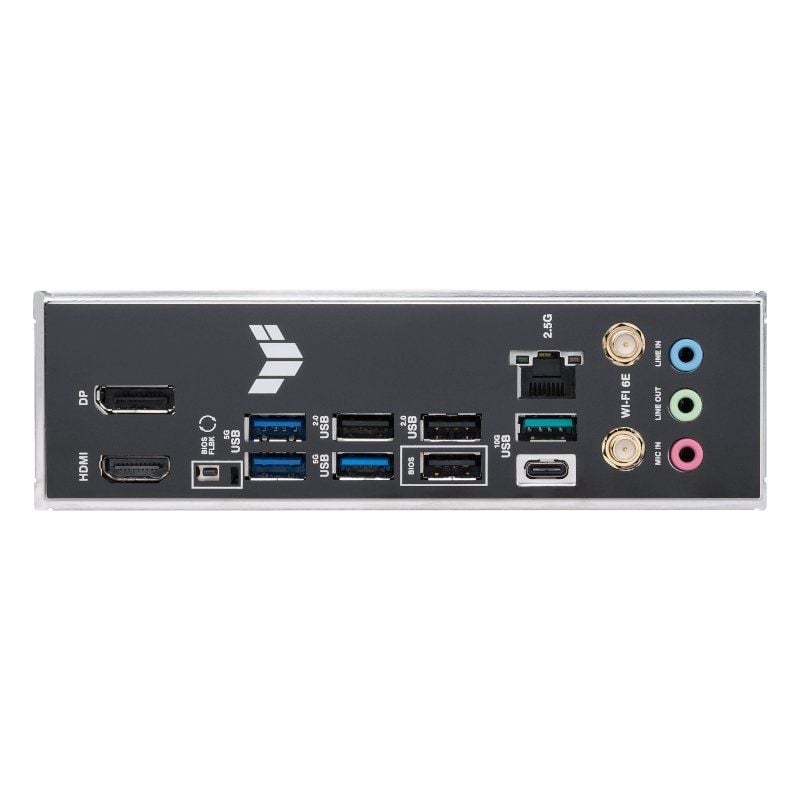

• Rear panel I/O ports
• 2 x 10 Gbps USB ports (1 x Type A + 1 x USB Type C®)
• 3 x 5 Gbps USB ports (3 x Type A)
• 3 x USB 2.0 (3 x Type-A)
• 1 x DisplayPort
• 1 x HDMI® port
• 1 x Wi-Fi module
• 1 x Realtek 2.5Gb Ethernet port
• 5 x audio connectors
• 1 x FlashBack™ BIOS button;
• Internal I/O connectors
• Related to fans and cooling
• 1 x 4-pin fan header(s) for CPU/
• 1 x 4-pin CPU OPT fan connector(s)
• 4-pin AIO pump connector(s)/
• 4 fan connector(s) 4-pin chassis fan header(s)
• 1 x 24-pin main power connector
• 1 x 8-pin +12V power connector
• 1 x 4-pin +12V power connector
• Related to storage
• 3 x M.2 slots (M key)
• 4 x SATA 6 Gb/s ports
• USB
• 1 x 20 Gbps USB connector (USB Type-C® compatible)
• 1 x 5Gbps USB header bracket(s) 2 additional 5Gbps USB ports
• 2 x USB 2.0 header bracket(s) 4 additional USB 2.0 ports
• Misc
• 3 x Gen 2 addressable connector(s)
• 1 x Aura RGB connector(s)
• 1 x Clear CMOS connector
• 1 x COM port connector
• 1 x front panel audio connector (AAFP)
• 20-pin system panel header. 3-pin chassis intrusion function.
• Special features
• ASUS TUF PROTECTION
• DIGI+ VRM (- Digital Power Design with DrMOS)
• Enhanced DRAM overcurrent protection
• ESD protectors
• TUF LANGuard
• Surge protection
• SafeSlot Core +
• Rear I/O connectors in stainless steel
• ASUS Q-Design
• M. 2 Q-Latch
• Q-DIMM
• Q-LED (CPU [red], DRAM [yellow], VGA [white], boot device [green yellow]) - ASUS Thermal Solution
• Q-Slot - M.2 Heatsink - ASUS EZ DIY VRM Heatsink Design - BIOS FlashBack™ Button - BIOS FlashBack™ LED - ProCool - Pre-mounted I/O Shield - SafeDIMM Aura Sync - Aura RGB Header(s) - Gen 2 Addressable Header(s)
• Software features
• ASUS exclusive software
• Crate Armory
• Creator Aura
• Aura Sync
• Fan Xpert 4
• Energy saving
• Two-way AI noise cancellation
• AI Suite 3
• TurboV EVO
• DIGI+ VRM
• PC Cleaner
• TUF GAMING CPU-Z
• DTS Audio Processing
• MyAsus
• Norton Antivirus software (free trial version)
• WinRAR
• UEFI BIOS
• ASUS EZ DIY
• ASUS CrashFree BIOS 3
• ASUS EZ Flash 3
• ASUS UEFI BIOS EZ Mode
• BIOS
• 256 Mb Flash ROM, UEFI AMI BIOS
• Operating System
• Windows® 11
• Windows® 10 64-bit
• Form Factor
• ATX Form Factor
• 12 inches x 9.6 inches (30.5 cm x 24.4 cm)
