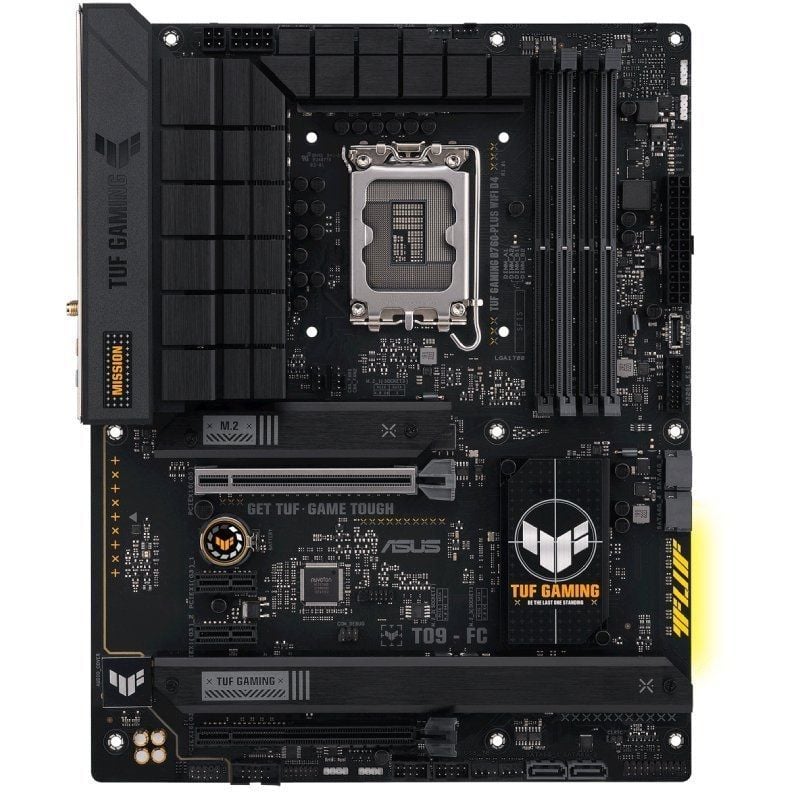

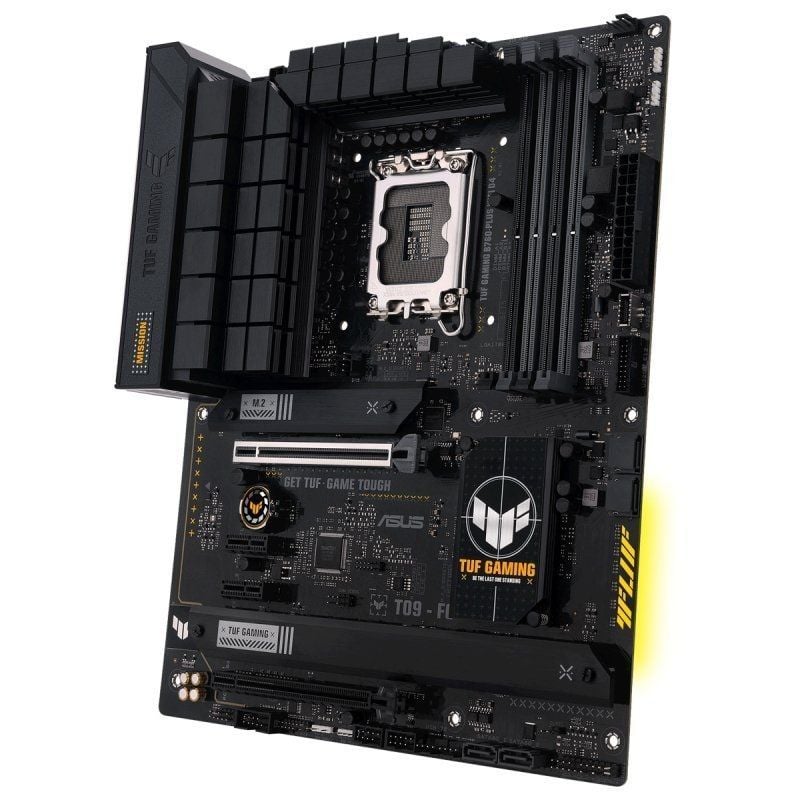

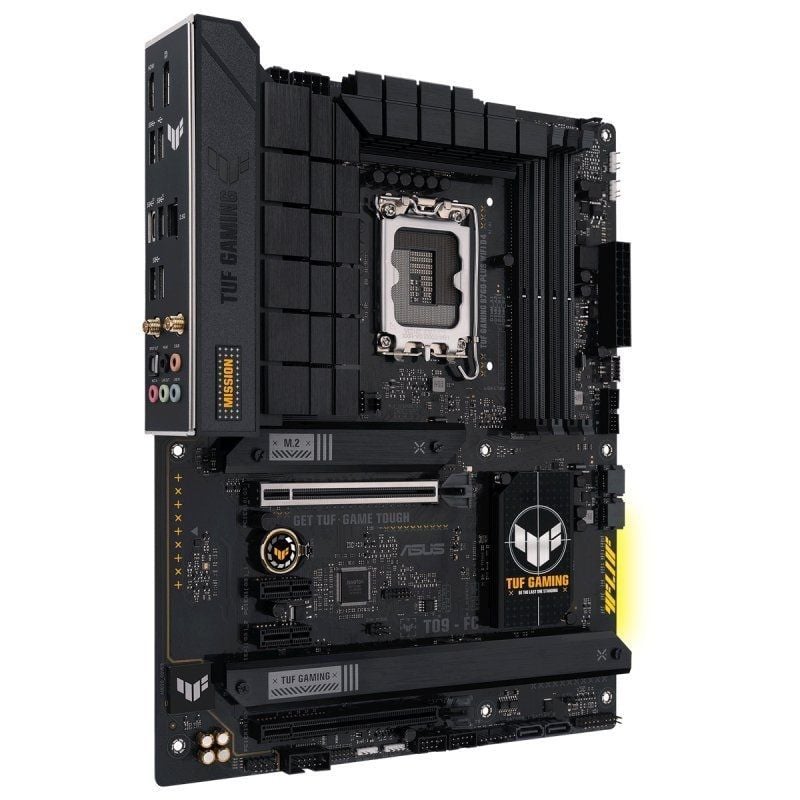

Asus TUF GAMING B760-plus (wi-fi) D4 Socket 1700 motherboard

TUF GAMING B760-PLUS WIFI D4

The TUF GAMING B760-PLUS WIFI D4 takes all the essentials of the latest Intel® processors and combines them with gaming-ready features and proven durability. Designed with military-grade components, an enhanced power solution, and a comprehensive cooling system, this motherboard exceeds expectations with rock-solid performance for marathon gaming sessions. TUF GAMING motherboards also undergo rigorous endurance testing to ensure they can withstand conditions where others might fail. Aesthetically, this model incorporates an embossed nameplate and geometric design elements to reflect the reliability and stability that define the TUF GAMING series.

• 12 + 1 DrMOS power stages with extended VRM heatsinks
• PCIe® 5.0 for graphics cards
• Supports DDR4 memory modules.
• USB 3.2 Gen 2x2 Type-C® and a USB 3.2 Gen 2 Type-C® connector on the front panel.
• Ethernet 2.5GB
• Wi-Fi 6
• Two-way AI noise cancellation

Intelligent Control

TUF GAMING B760 motherboards include flexible tools to adjust all aspects of your system, allowing performance tuning to skillfully match the way you play.
Comprehensive energy efficiency
The power saving feature contains several settings that can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, dim Aura lighting, and set the fan profile to a power saving mode. You can also enable the power saving scheme built into Microsoft Windows.
UEFI BIOS
ASUS's renowned UEFI BIOS provides everything you need to configure, modify, and customize your system. It offers intelligently simplified options for DIY PC beginners and comprehensive features for seasoned veterans.
Crate Armoury
ASUS' exclusive Armory Crate software centralizes control over all compatible gaming products. A single, intuitive interface lets you customize RGB lighting for all compatible devices and connect them to Aura Sync for unified lighting. It also provides information and allows you to manage a growing hardware ecosystem. Armory Crate also allows for easy product registration and features a news section to keep you in touch with the gaming community.

SOLID ROCK PERFORMANCE

With enhanced power delivery and comprehensive cooling options to power the latest Intel CPUs, plus support for DDR4 memory and PCIe 4.0 storage, the TUF GAMING B760-PLUS WIFI D4 is the perfect foundation for your next Intel battle rig.
DrMOS power stages
12+1 power stages combine MOSFETs and high- and low-side controllers in a single package to deliver power, efficiency, and stable performance for all supported Intel processors.
Six-layer PCB design
The multi-layer PCB design quickly dissipates heat around the voltage regulators to improve overall system stability and give the CPU more headroom for overclocking.
ProCool 8+4 pin power connectors
Compared to most power inputs, ASUS ProCool connectors are designed to stringent specifications to ensure full contact with the power supply wires. The resulting lower impedance helps prevent hotspots and connector failures.
TUF Capacitors
TUF 5K black metal capacitors provide 52% greater temperature tolerance and 2.5x longer lifespan than standard motherboard capacitors.
Digi+ VRM
The integrated Digi+ voltage regulator module (VRM) is one of the best in the industry, optimized for delivering ultra-smooth and ultra-clean power to the CPU at all times.

IMPERSIVE GAMING

TUF GAMING B760 motherboards offer a high-performance, feature-rich gaming package, with ultra-fast networking for smoother online gaming, crystal-clear audio with positional cues for FPS games, and integrated RGB lighting that syncs with connected equipment to personalize your gaming environment.
More information at My ASUS
Wi-Fi connectivity
The Intel WiFi 6 module supports the 802.11ax standard and increases the maximum theoretical bandwidth to an incredible 2.4Gbps*. Perhaps most importantly for advanced users, it is optimized for more efficient operation in crowded networks with intense competitive traffic. Pair your motherboard with ASUS WiFi 6 routers to fully experience the networking potential of WiFi 6.
* Actual speed depends on environmental conditions.
MyASUS offers a variety of support features to help you communicate with customer service, resolve issues, and optimize product performance. You can also use MyASUS to enable the SmartConnect WiFi feature to automatically connect to the wireless router with the best signal.
2.5 GB Ethernet

The integrated 2.5Gb Ethernet enhances your LAN connection with up to 2.5x improved bandwidth. Using your existing LAN cable, you can take advantage of this network upgrade to experience smoother, lag-free gaming, stream high-resolution videos instantly, and enjoy faster file transfers.

Technical specifications

• Model

• TUF GAMING B760-PLUS WIFI D4

CPU

• Intel® Socket LGA1700 for Intel® Core™ 13th Gen™ and Intel® Core™ 12G, Pentium® Gold and Celeron® processors * Support for Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * See www.asus.com for CPU support list. ** Support for Intel® Turbo Boost Max Technology 3.0 depends on CPU types.

• chipset

• Intel® B760 Chipset

• Memory

• 4 DIMM modules, max. 128 GB, DDR4 non-ECC, memory without buffer*
• Dual-channel memory architecture
• Intel® Extreme Memory Profile (XMP)
• OptiMem II
• * Supported memory types, data rate (speed), and number of DRAM modules vary depending on CPU and memory configuration. For more information, see CPU/Memory Support in the Support tab or visit https://www.asus.com/support/

• Graphics

• 1 x DisplayPort**
• 1 x HDMI® port*** *
• Graphics specifications may vary depending on the CPU type. See www.intel.com for updates.
• ** Supports a maximum resolution of 4K@60Hz as specified in DisplayPort 1.4.
• *** Supports 4K@60Hz as specified in HDMI 2.1.

• Expansion slots

• 13th and 12th generation Intel® processors.
• 1 PCIe 5.0 x16 slot Chipset
• Intel® B760
• 1 PCIe 3.0 x16 slot (x4 mode support)*
• 2 PCIe 3.0 x1 slots*
• * PCIEX16(G3) shares bandwidth with PCIEX1(G3)_1 and PCIEX1(G3)_2. When PCIEX1(G3)_1 or PCIEX1(G3)_2 is operating in PCIe x1 mode, PCIEX16(G3) will only operate in PCIe x2 mode.
• To ensure compatibility with your installed device, please refer to https://www.asus.com/support/ for a list of supported peripherals.

• Storage

• Total supports 3 M. 2 slots and 4 SATA 6G ports. and 4 SATA 6Gb/s ports*
• 13th and 12th generation Intel® processors
• M. 21 slot (M key), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Chipset
• Intel® B760
• M. 2 Slot_2 (M key), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
• M. 2 Slot3 (M key), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• 4 x SATA 6 Gb/s ports
• * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.

ethernet

• 1 x Realtek 2.5Gb Ethernet
• TUF LANGuard

• Wireless and Bluetooth

• Wi-Fi 6
• 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
• Compatible with 2.4/5 GHz frequency bands.
• Bluetooth® v5.2*
• *Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

• USB

• Rear USB (6 ports total)
• 1 USB 3.2 Gen 2x2 port (1 x USB Type-C ® )
• 1 USB 3.2 Gen 2 port (1 x Type-A)
• 3 USB 3.2 Gen 1 ports (3 x Type-A)
• 1 USB 2.0 port (1 Type-A)
• Front USB (7 ports in total)
• 1 USB 3.2 Gen 2 (compatible with USB Type-C®)
• One USB 3.2 Gen 1 header supports two additional USB 3.2 Gen 1 ports.
• Two USB 2.0 headers support four additional USB 2.0 ports.

• Audio

• High-definition audio codec with Realtek 7.1
• Supports: jack detection, multi-streaming, premium audio capacitors
• Dedicated audio PCB layers
• Audio shielding

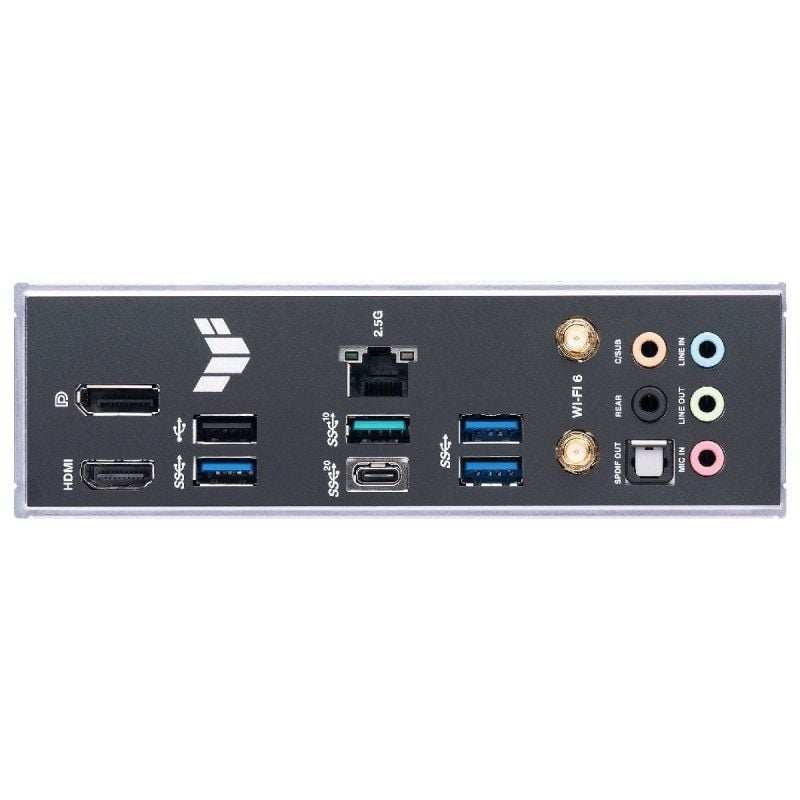

• Rear panel I/O ports
• 1 x USB 3.2 Gen 2x2 (1 x USB Type-C ® )
• 1 x USB 3.2 Gen 2 port (1 x Type-A)
• 3 x USB 3.2 Gen 1 ports (3 x Type-A)
• 1 x USB 2.0 (1 x Type-A)
• 1 x DisplayPort port 1 x
• HDMI ®
• 1 x Wi-Fi Module
• 1 x Realtek Ethernet 2.5Gb port
• 5 x audio connectors
• 1 x optical S/PDIF output port

• Internal I/O connectors

• Related to fans and cooling
• 1 x 4-pin CPU fan connector
• 4-pin connector for CPU OPT fan 1
• AIO Pump
• From. 4-pin chassis fan head 4 4 pins
• Related
• with power supply 1 main 24-pin power connector
• 1 x 8-pin +12V power connector
• 1 +12V 4-pin power connector
• Related to storage
• 3 M.2 slots (M key)
• 4 SATA 6 Gb/s ports
• USB
• 1 USB 3.2 Gen 2 connector (compatible with USB Type-C®)
• 1 USB 3.2 Gen 1 header compatible with 2 additional USB 3.2 Gen 1 ports
• 2 USB 2.0 headers compatible with 4 additional USB 2.0 ports
• Misc
• 3 addressable Gen 2 connectors
• 1 Aura RGB connector
• 1 Clear CMOS connector
• 1 COM port connector
• 1 front panel audio connector (AAFP)
• 1 x 20-3 pin system panel connector with chassis intrusion function
• 1 Thunderbolt™ connector (USB4 ® )
• Special Features
• ASUS TUF PROTECTION
• DIGI+ VRM (- Digital Power Design with DrMOS)
• ESD protectors
• TUF LANGuard
• Surge protection
• SafeSlot Core +
• Rear I/O in stainless steel
• ASUS Q-Design
• M. 2 Q-Latch
• Q-DIMM
• Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot device [green yellow])
• Q-Slot
• ASUS Thermal Solution
• Heat sink M. 2
• Heat sink M. 2
• VRM heatsink design
• ASUS EZ DIY
• CPU socket lever protector
• ProCool
• I/O Shield
• Pre-assembled - SafeSlot Core +
• SafeDIMM
• Aura Sync
• Aura RGB Header
• Gen 2 Addressable Headers

• Software features

• ASUS exclusive software
• Crate Armory
• Creator Aura
• Aura Sync
• Fan Xpert 4
• Energy Saving
• Two-way AI noise cancellation
• AI Suite 3
• DIGI+ VRM
• PC Cleaner
• TUF GAMING CPU-Z
• DTS audio processing
• MyASUS
• Norton 360 for gamers
• WinRAR
• UEFI BIOS
• ASUS EZ DIY
• ASUS CrashFree BIOS 3
• ASUS UEFI BIOS EZ Flash 3
• ASUS UEFI BIOS EZ Mode

• BIOS

• Flash ROM 128 Mb, UEFI AMI BIOS

• Manipulability

• WOL by PME, PXE

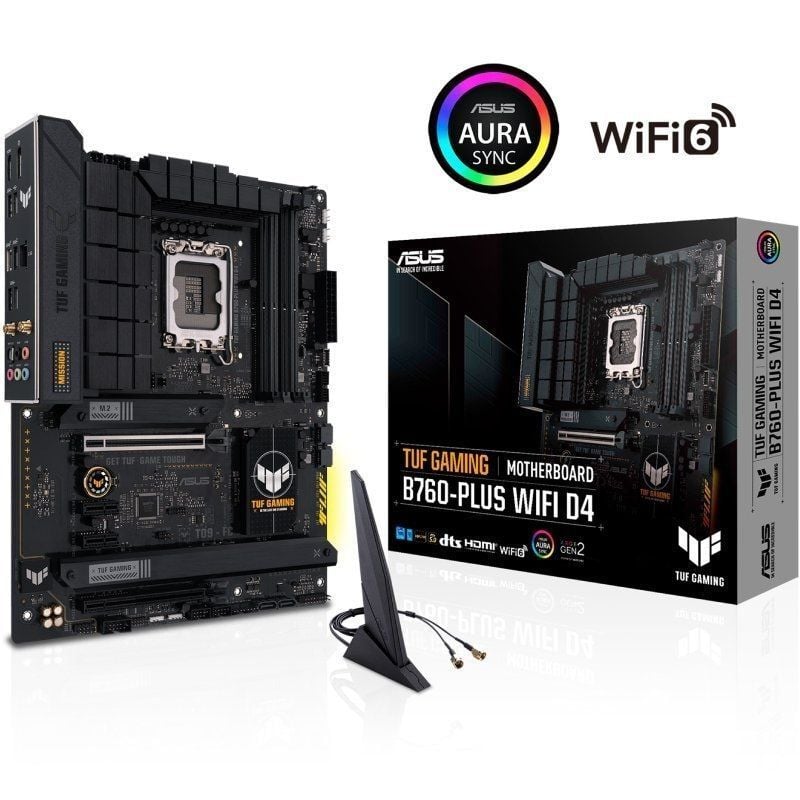

• Accessories

• Cables
• 2 SATA 6 Gb/s cables
• Several
• 1 ASUS Wi-Fi mobile antenna
• 1 TUF Gaming sticker
• 2 M.2 rubber gaskets
• 1 pack of screws for M.2 SSD
• Documentation
• 1 TUF certification card
• 1 user guide

Operating System

• Windows® 11, Windows® 10 64-bit

Form Factor

• ATX form factor
• 12 inches x 9.6 inches (30.5 cm x 24.4 cm)
