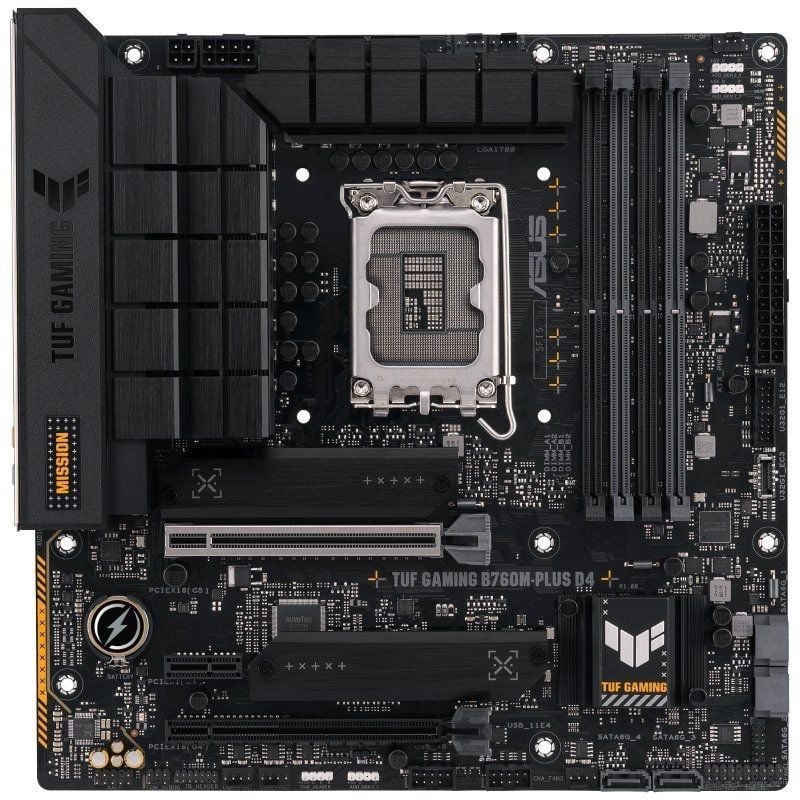

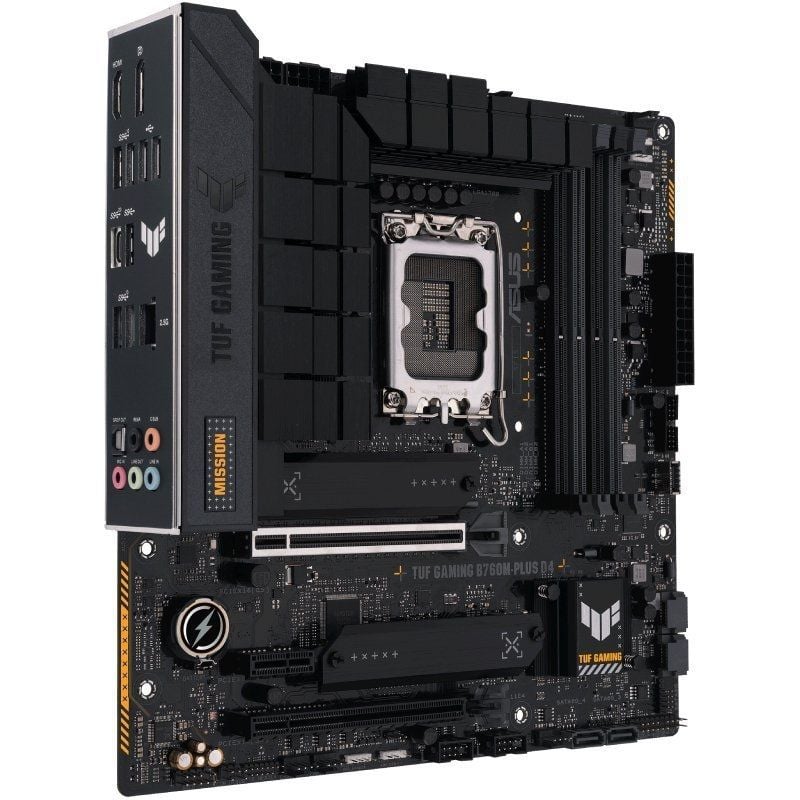

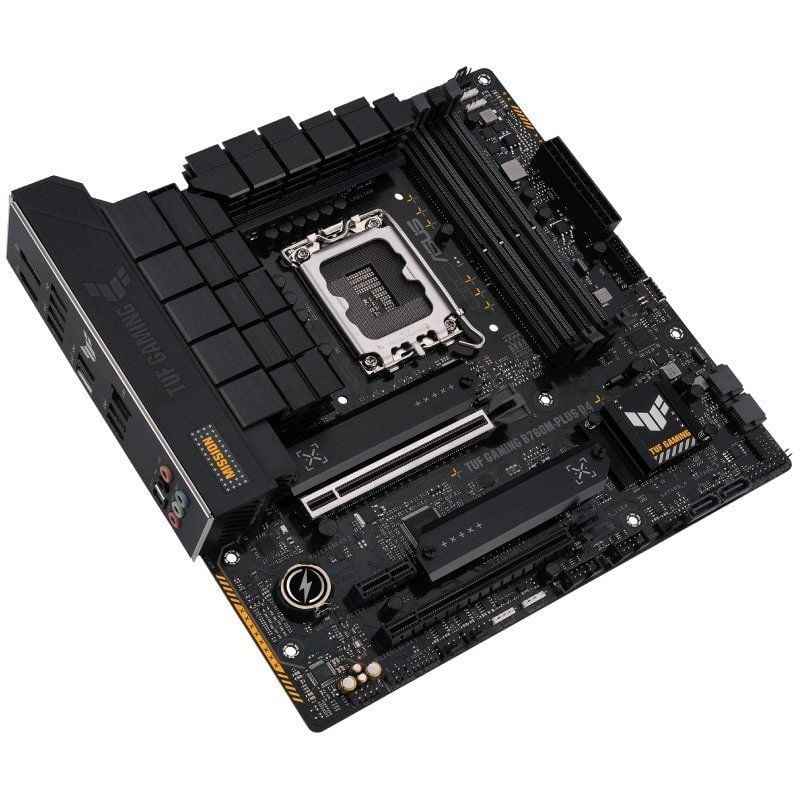

TUF GAMING B760M-PLUS D4

The TUF GAMING B760M-PLUS D4 takes all the essentials of the latest Intel® processors and combines them with gaming-ready features and proven durability. Designed with military-grade components, an enhanced power supply solution, and a comprehensive cooling system, this motherboard exceeds expectations with rock-solid performance for marathon gaming sessions. TUF GAMING motherboards also undergo rigorous endurance testing to ensure they can withstand conditions where others might fail. Aesthetically, this model incorporates an embossed nameplate and geometric design elements to reflect the reliability and stability that define the TUF GAMING series.

Comprehensive energy efficiency

The power saving function contains several settings that can easily optimize power consumption and maximize energy savings. It's possible to enable a CPU power limit, dim Aura lighting, and set the fan profile to a power saving mode. You can also switch the built-in power saving plan in Microsoft Windows.

ProCool 8+4 pin power connectors

Compared to most power inputs, ASUS ProCool connectors are designed to stringent specifications to ensure full contact with the power supply cables. The resulting lower impedance helps prevent hotspots and connector failures.

M. 2 Q-Latch

The innovative Q-Latch makes installing or removing an M.2 SSD easy without the need for dedicated tools. The design employs a simple locking mechanism to secure the M.2 SSD, seamlessly eliminating the need for screws.

Removable captive screws

The M.2 slot screws reduce the risk of dropping or losing a screw somewhere in the case when removing the M.2 heatsink.

Q-LED

The integrated Q-LED troubleshooting lights provide custom PC enthusiasts with a quick indicator to confirm that key components (CPU, RAM, graphics card, storage devices) are functioning normally during startup.

2.5GB Ethernet

The integrated 2.5Gb Ethernet enhances your LAN connection with up to 2.5x the bandwidth improvement. Using your existing LAN cable, you can take advantage of this network upgrade to experience smoother, lag-free gaming, stream high-resolution videos instantly, and enjoy faster file transfers.

SPECIFICATIONS

• CPU

• Intel® Socket LGA1700 for 13th Generation Intel® Core™ and Intel® Core™ processors. 12th Generation Intel® Core™, Pentium® Gold and Celeron® processors * Support for Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * See www.asus.com for CPU support list. ** Support for Intel® Turbo Boost Max Technology 3.0 depends on CPU types.

• Chipset

• Intel® B760 Chipset

• Memory

• 4 DIMM modules, max. 128GB, DDR4 5333(OC)/ 5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600( OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Unbuffered Memory, No ECC*
• Dual-channel memory architecture
• Supports Intel® Extreme Memory Profile (XMP)
• OptiMem II
• * The supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration.

• Graphics

• 1 x DisplayPort**
• 1 x HDMI® port*** *
• Graphics specifications may vary depending on the CPU type. See www.intel.com for updates.
• ** Supports a maximum resolution of 4K@60Hz, as specified in DisplayPort 1.4.
• ***Supports 4K@60Hz, as specified in HDMI 2.1.

• Expansion slots

• 13th and 12th generation Intel® processors, 1 PCIe 5.0 x16 slot, Intel® B760 chipset.
• PCIe 4.0 x16 slot (supports x4 mode) 1 PCIe 4.0 x1 slot: To ensure compatibility with your installed device, please refer to https://www.asus.com/support/ for a list of compatible peripherals.

• Storage

• Total supports 2 M. 2 slots and 4 SATA 6GATA 6G ports. and 4 6Gb/s SATA ports*
• 13th and 12th generation Intel® M.2_Slot_1 (M-Key) processors, type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• Intel® Chipset
• B760 M. 2 Slot2 (M Key), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• 4 SATA 6Gb/s ports
• * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
• ethernet
• 1 x Realtek 2.5Gb Ethernet
• TUF LANGuard

USB

• Rear USB (8 ports in total)
• 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C ® )
• 4 x USB 3.2 Gen 2 ports (4 x Type-A)
• 1 x USB 3.2 Gen 1 port (1 x Type-A)
• 2 x USB 2.0 ports (2 x Type A)
• 2 front USB ports (7 ports in total)
• 1 USB 3.2 Gen 1 connector (compatible with USB Type-C®)*
• 1 USB 3.2 Gen 1 header compatible with 2 additional USB 3.2 Gen 1 ports
• 2 USB 2.0 ports compatible with 4 additional USB 2.0 ports*
• * USB_E4 and USB_EC3 can only be enabled/disabled simultaneously.

• Audio

• High-definition audio codec with Realtek 7.1 surround sound.
• Supports: Connector detection, multi-streaming, front panel connector remapping.
• Supports playback up to 24-bit / 192 kHz

• Audio features

• Audio protection
• S/PDIF rear optical output port
• Premium audio capacitors: dedicated audio PCB layers

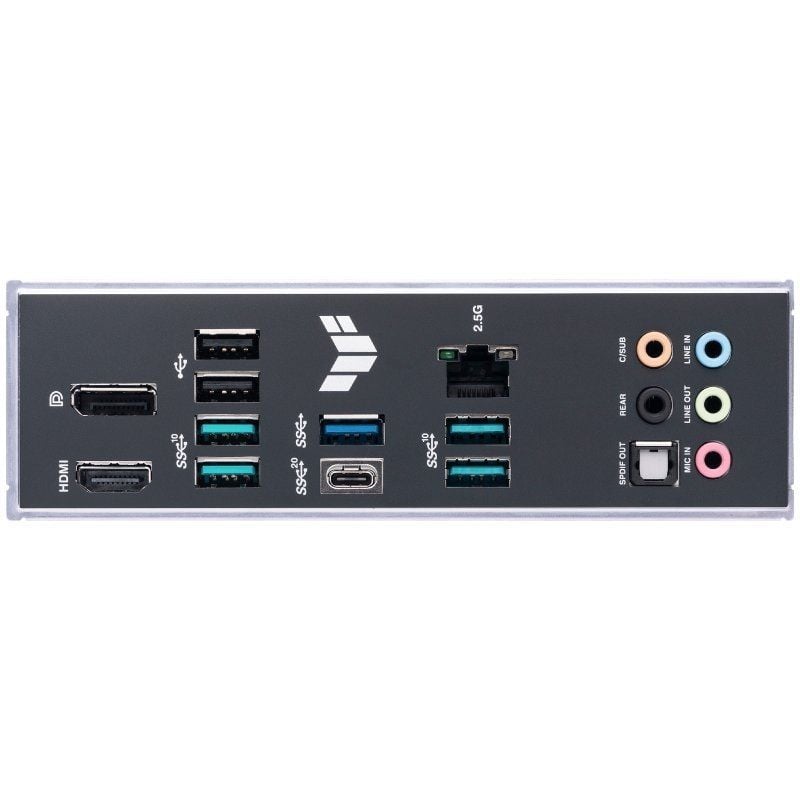

Rear panel I/O ports

• 1 x USB 3.2 Gen 2x2 (1 x USB Type-C ® )
• 4 x USB 3.2 Gen 2 ports (4 x Type-A)
• 1 x USB 3.2 Gen 1 port (1 x Type-A)
• 2 x USB 2.0 (2 x Type-A)
• 1 x DisplayPort port 1 x
• HDMI ®
• 1 x Wi-Fi Module
• 1 x Realtek Ethernet 2.5Gb port
• 5 x audio connectors
• 1 x Optical S/PDIF output port

• Internal I/O connectors

• Fan and related cooling
• 1 x 4-pin CPU fan header
• 1 x 4-pin CPU OPT fan header
• 1 x 4-pin AIO pump header
• 1 x 4-pin AIO pump header
• 1 x 4-pin CPU OPT fan header
• 1 x 4-pin CPU OPT fan header
• 1 x 4-pin CPU OPT fan header
• 1 x 4-pin CPU OPT fan header
• 1 x 4-pin AIO 4-pin chassis fan head
• 3. 4-pin chassis fan head
• Related to food
• 1 main 24-pin power supply
• 1 +12V 8-pin power connector
• 1 +12V 4-pin power connector
• Related to storage
• 2 M slots. 2 (M key) slots
• 4 SATA 6 Gb/s ports

USB

• 1 USB 3.2 Gen 1 connector (compatible with USB Type-C®)
• 1 USB 3.2 Gen 1 header compatible with 2 additional USB 3.2 Gen 1 ports
• 2 USB 2.0 headers compatible with 4 additional USB 2.0 ports

• Several

• 3 addressable Gen 2 connectors
• 1 AURA RGB connector
• 1 transparent CMOS connector
• 1 front panel audio connector (AAFP)
• 1 x 20-3 pin system panel connector with chassis intrusion function
• 1 Thunderbolt™ connector (USB4 ® )
• Special Features
• ASUS TUF PROTECTION
• DIGI+ VRM (- Digital Power Design with DrMOS)
• ESD protectors
• TUF LANGuard
• Surge protection
• SafeSlot Core +
• Rear I/O in stainless steel
• ASUS Q-Design
• M. 2 Q-Latch
• Q-DIMM
• Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot device [green yellow])
• Q-Slot
• ASUS Thermal Solution
• Heat sink M. 2
• Heat sink M. 2
• VRM heatsink design
• ASUS EZ DIY
• CPU socket lever protector
• ProCool
• Pre-mounted I/O shield - SafeDIMM
• AURA Sync
• AURA RGB Header
• Gen 2 Addressable Headers

• Software features

• ASUS exclusive software
• Crate Armory
• AURA Creator
• AURA Sync
• Fan Xpert 2+
• Power Saving
• Two-way AI noise cancellation
• AI Suite 3
• DIGI+ VRM
• PC Cleaner
• TUF GAMING CPU-Z
• DTS Audio Processing
• Norton 360 for Gamers
• WinRAR
• UEFI BIOS
• ASUS EZ DIY
• ASUS CrashFree BIOS 3
• ASUS EZ Flash 3
• ASUS UEFI BIOS EZ Mode

BIOS

• Flash ROM 128 Mb, UEFI AMI BIOS

• Manipulability

• WOL by PME, PXE

• Accessories

• Cables
• 2 SATA 6 Gb/s cables
• Several
• 1 ASUS Wi-Fi mobile antenna
• 1 pack of M. 2 erasers
• 1 pack of screws for M.2 SSD
• 1 TUF Gaming sticker

Documentation

• 1 TUF certification card
• 1 user guide

Operating System

• Windows® 11, Windows® 10 64-bit

• form factor

• mATX 9.6 inches x 9.6 inches (24.4 cm x 24.4 cm)
