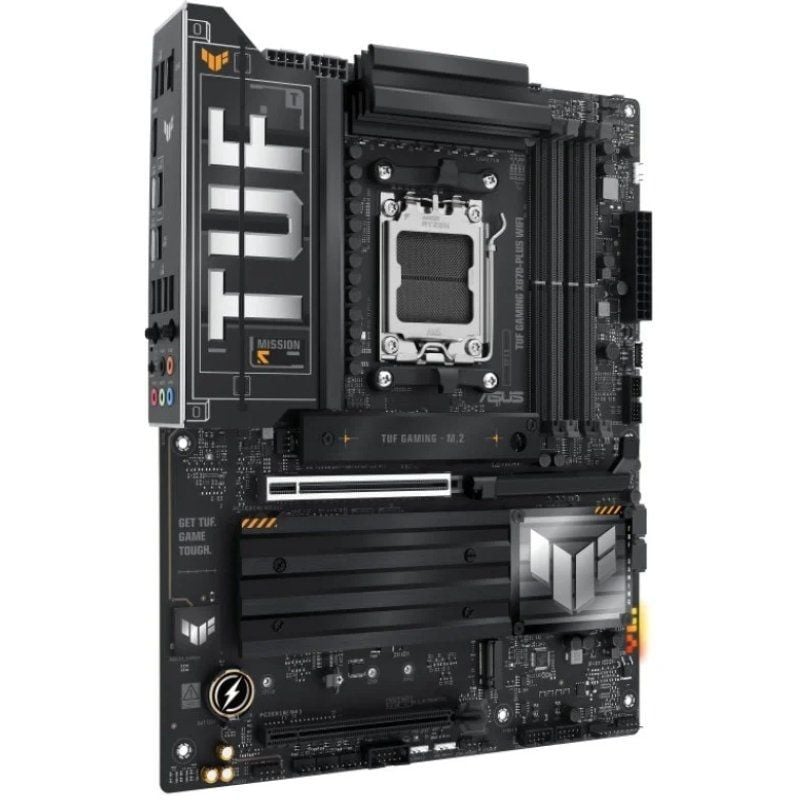

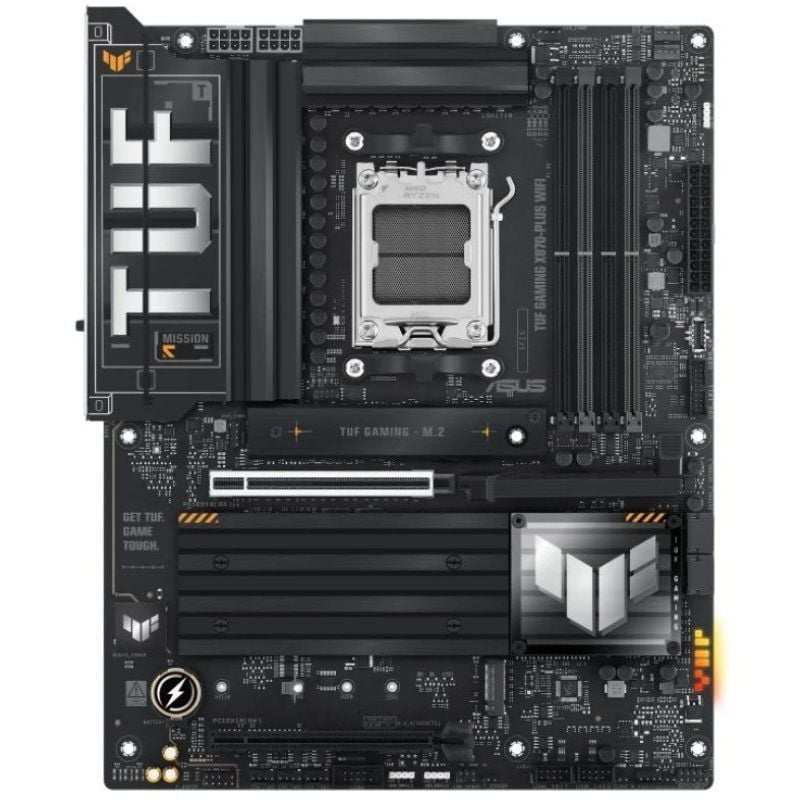

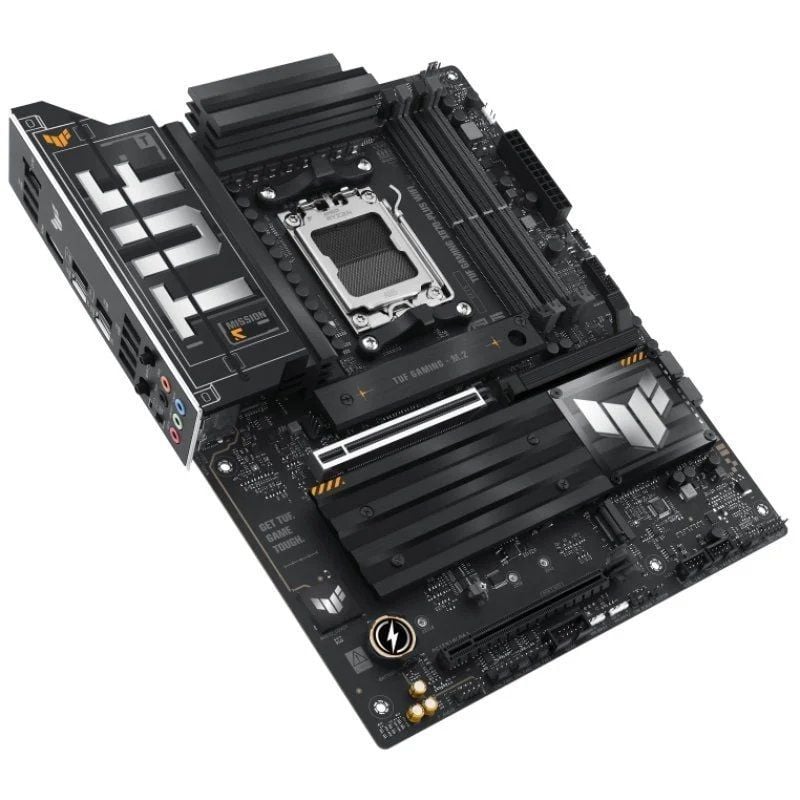

Asus TUF GAMING X870-plus WIFI Motherboard / Socket AM5

TUF GAMING X870-PLUS WIFI

The ASUS TUF GAMING X870-PLUS WIFI motherboard takes all the essentials of the latest AMD Ryzen™ processors and combines them with gaming-ready features and proven durability. Designed with military-grade components, an enhanced power solution, and a comprehensive cooling system, this motherboard exceeds expectations with solid and stable performance for gaming marathons. TUF GAMING motherboards also undergo rigorous endurance testing to ensure they can withstand conditions where others might fail. This platform provides the power and connectivity that advanced AI computing applications demand.

Complete AI solution

ASUS AI solutions – including AI Overclocking, AI Cooling II for thermal control, and AI Networking II for real-time bandwidth optimization – provide intelligent overclocking, efficient cooling, and new levels of ultra-fast connectivity.

DYNAMIC OC SWITCH

The Dynamic OC Switch maximizes CPU performance, allowing you to set current and temperature limits to automatically switch between manual overclocking for heavy multithreaded workloads and Precision Boost Overdrive for single-threaded tasks. The latest Overclocking Load Guard features an enhanced instantaneous current protection mechanism to prevent users from experiencing system crashes during overclocking.

CORE FLEX

Core Flex allows you to push the limits further than ever before, letting you control power and temperature in new and creative ways. In its simplest form, you can set breakpoints to gradually reduce the CPU core frequency as temperature or current increases. But the system is extremely adaptable, supporting various user-controlled functions that can manipulate power, current, and temperature limits independently, so you can bend CPU performance to your will.

UEFI BIOS

A physical button unlocks the security lock on the first PCIe slot with a single touch, greatly simplifying the process of disconnecting a PCIe card from the motherboard when it's time to upgrade to a new GPU or other compatible device.

Premium Power Design

Stable power is crucial for maximizing the performance of AMD processors. The motherboard is designed to meet the needs of high-core-count CPUs. It includes 16(80A) + 2(80A) + 1(80A) power phases that integrate high-side and low-side MOSFETs and controllers in packages of up to 80A each. This configuration ensures optimal power delivery, efficiency, stability, and performance for current and future AMD processors.

DRAM overclocking performance

Comprehensive memory tuning options are the cornerstone of TUF GAMING motherboards. With this motherboard, you can unlock the full potential of your DDR5 modules*, whether they're from an extreme speed kit or a locked-down basic set.

ASUS AEMP

ASUS Enhanced Memory Profile (AEMP) is a unique firmware feature for PMIC-restricted memory modules. AEMP automatically detects the memory chips in your kit and then presents optimized frequency, timing, and voltage profiles that you can quickly apply.

M.2 PCIe 5.0 support

This motherboard also features two M.2 PCIe 5.0 slots for the fastest data transfers of up to 128 Gbps*, and all M.2 slots support NVMe RAID configurations. All M.2 slots support NVMe RAID configurations to take advantage of the latest speeds available.

Specifications

• CPU
• AMD Socket AM5 for AMD Ryzen 9000, 8000, and 7000 series desktop processors*
• Chipset
• AMD X870 Chipset
• Memory
• 4 DIMM slots, max. 192GB, DDR5
• Supports up to 8000+ MT/s (OC) with Ryzen 9000, 8000, and 7000 series ECC and non-ECC processors, unbuffered DIMM*
• Dual-channel memory architecture
• Supports AMD extended profiles for overclocking (EXPO)
• ASUS Enhanced Memory Profile (AEMP)
• * Adjustments will be made based on the specifications of mass-produced memory products available on the market.
• * Supported memory types, data rate, and number of DRAM modules vary depending on CPU and memory configuration. For more information, see the CPU/memory compatibility list on the Support tab of the product information website or visit https://www.asus.com/support/download-center/.
• * Non-ECC and unbuffered DDR5 memory supports the On-Die ECC feature.
• Graphics
• 1 HDMI port
• ** 2 USB4 (40 Gbps) ports with support for USB Type-C monitor outputs *** *
• Graphics specifications may vary between CPU types. Please refer to the AMD CPU specifications.
• ** Supports 4K at 60 Hz, as specified in HDMI 2.1.
• *** Supports a maximum resolution of 4K at 60 Hz, as specified in DisplayPort 1.4a.
• **** VGA resolution support depends on the resolution of the processor or graphics card.
• Expansion slots
• AMD Ryzen 9000 and 7000 series desktop processors*
• 1 PCIe 5.0 x16 (supports x16 mode)**
• AMD Ryzen 8000 Series Desktop Processors
• 1 PCIe 4.0 x16 slot (compatible with x8/x4 mode)***
• AMD X870 Chipset
• 1 PCIe 4.0 x16 (compatible with x4 mode)****
• * Please refer to the PCIe bifurcation table on the support website (https://www.asus.com/support/FAQ/1037507/).
• ** PCIEX16(G5) shares bandwidth with M.2._2. PCIEX16 (G5) will operate in x8 mode when running M.2._2.
• *** Specifications vary depending on the CPU type.
• **** PCIEX16(G4) shares bandwidth with M.2_4. PCIEX16(G4) will be disabled when you are running M.2_4.
• To ensure compatibility with your installed device, please refer to https://www.asus.com/support/download-center/ for a list of compatible peripherals.
• Storage
• Total Supports 4 M. 2 slots and 2 SATA 6G ports. and 2 6Gb/s SATA ports*
• AMD Ryzen 9000 and 7000 series desktop processors
• M. 2_Slot_1 (M key), type 2280 (PCIe 5.0 x4 compatible)
• M. 2_Slot_2 (M key), type 2280 (PCIe 5.0 x4 compatible)**
• AMD Ryzen 8000 Series Desktop Processors
• M.2 Slot 1 (M key), type 2280 (PCIe 4.0 x4 compatible)
• The M.2_2 slot is not compatible with the AMD X870 chipset.
• Slot M. 2_3 (M key), type 2280 (compatible with PCIe 4.0 x4 mode)
• Slot M.24 (M key), type 2242/2260/2280/22110 (PCIe 4.0 x4 compatible)***
• 2 x SATA 6 Gb/s ports
• * AMD RAIDXpert2 technology supports PCIe RAID 0/1/5/10 and SATA RAID 0/1. The RAID 5 feature is only compatible with AMD Ryzen 9000 series CPUs.
• ** PCIEX16(G5) shares bandwidth with M. 2_2. PCIEX16 (G5) will operate in x8 mode when running M. 2_2.
• *** PCIEX16 (G4) shares bandwidth with M.2_4. PCIEX16(G4) will be disabled when operating with M.2_4.
• Ethernet
• 1 x
• Realtek 2.5Gb LANguard TUF Ethernet
• Wireless and Bluetooth
• Wi-Fi 7*
• 2x2 Wi-Fi 7 (802.11be)
• Supports 2.4/5/6 GHz frequency bands**
• It supports 160 MHz Wi-Fi 7 bandwidth, with transfer rates up to 2.9 Gbps.
• Bluetooth v5.4***
• *Wi-Fi capabilities may vary depending on the operating system.
• For Windows 11, Wi-Fi 7 requires version 24H2 or later for all features; Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.
• For Windows 10, please be aware that no drivers are available; consult the Wi-Fi chipset vendor's website for more information.
• **The 6 GHz Wi-Fi frequency band and bandwidth regulations may vary depending on the country.**
• ***Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
• USB
• Rear USB (10 ports in total)
• 2 USB4 ports (40 Gbps) (2 x USB Type-C)*
• 3 USB 10 Gbps ports (3 x Type A)
• 4 USB 5 Gbps ports (4 x Type A)
• 1 USB 2.0 port (1 x Type A)
• Front USB (7 ports in total)
• 1 USB 20 Gbps connector (USB Type-C® compatible with fast PD charging up to 30W)**
• One USB 5 Gbps connector supports two additional USB 5 Gbps ports.
• Two USB 2.0 connectors support four additional USB 2.0 ports.
• * USB Type-C® power supply output: max. 5 V/3 A ** USB Type-C® power supply output: 5 V/9 V max. 3 A, 12 V max. 2.5 A, 15 V max. 2 A.
• Audio
• Realtek ALC1220P 7.1 High Definition Audio Codec with Surround Sound
• Impedance detection for front and rear headphone outputs
• Internal audio amplifier to enhance the highest sound quality for headphones and speakers.
• Supports: connector detection, multiple transmission, front panel connector reassignment.
• High-quality stereo playback output with 120 dB SNR and recording input with 113 dB SNR (line input).
• Supports playback up to 32-bit/192 kHz*
• Audio features
• Audio shielding
• Premium audio capacitors
• Dedicated audio PCB layers
• Audio cover
• Exclusive anti-pop circuit
• * Due to HDA ​​bandwidth limitations, 32-bit/192 kHz is not compatible with 7.1 surround sound.

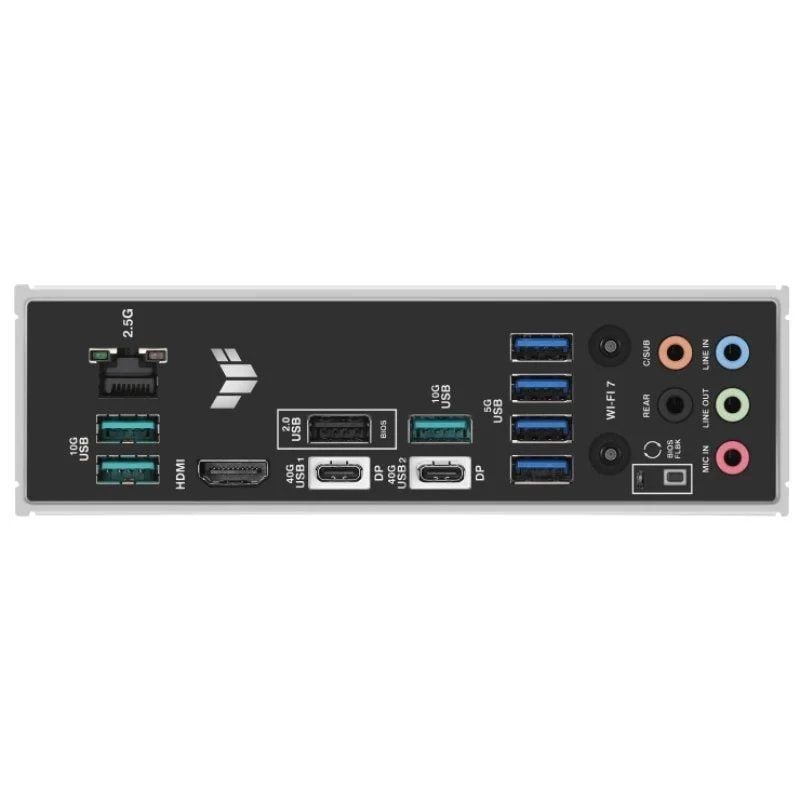

• Rear panel I/O ports
• 2 x USB4 ports (40 Gbps) (2 x USB Type-C ports)
• 3 USB 10 Gbps ports (3 x Type A)
• 4 USB 5 Gbps ports (4 x Type A)
• 1 USB 2.0 port (1 x Type A)
• 1 HDMI port
• 1 Wi-Fi module
• 1 Realtek 2.5 Gb
• 5 audio connectors
• 1 BIOS FlashBack button
• Internal I/O connectors
• Related to fans and cooling
• 1 x 4-pin connector for CPU fan
• 1 x 4-pin connector for CPU OPT fan
• 1 x 4-pin connector for AIO pump
• 1 x 4-pin connector for CPU OPT fan
• 2 x 4-pin connectors for CPU OPT fan
• 1 x 4-pin connector for CPU OPT fan
• 1 x 4-pin connector for AIO pump, 4 x 4-pin connectors for chassis fans
• 1 W_PUMP+ connector
• Related to food
• 1 main 24-pin power connector
• 2 x 8-pin CPU +12V power connectors
• Related to storage
• 4 x M.2 slots (M key)
• 2 x SATA 6 Gb/s ports
• USB
• 1 x 20 Gbps USB connector (compatible with USB Type-C with up to 30W fast PD charging)
• 1 x 5Gbps USB connector compatible with 2 additional 5Gbps USB ports
• 2 x USB 2.0 connectors compatible with 4 additional USB 2.0 ports.
• Misc
• 3 x Gen 2 addressable connectors
• 1 x Clear CMOS connector
• 1 x Chassis Intrusion Connector
• 1 x COM port connector
• 1 x audio connector
• 1 x front panel audio connector (F_AUDIO)
• 2 x USB 2 connector. Front panel (F_AUDIO)
• 1 x 10-pin front panel connector for the system and
• 1 x thermal sensor connector
• Special features
• ASUS TUF PROTECTION
• DIGI+ VRM (- Digital Power Design with SPS)
• ESD protections
• TUF LANGuard
• Overvoltage protection
• SafeSlot
• Rear I/O in stainless steel
• ASUS Q-Design
• M. 2 Q-Latch
• PCIe Q-Release Slot
• Q-Antenna
• Q-Dashboard
• Q-DIMM
• Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot device [green yellow])
• Q-Slot
• ASUS Thermal Solution
• M. 2 heatsinks
• M. 2 heatsinks
• VRM heatsink design
• ASUS EZ DIY
• BIOS FlashBack™ button
• LED BIOS FlashBack™
• ProCool
• Pre-assembled I/O shield
• SafeDIMM
• Aura Sync
• Gen 2 Addressable Headers
• Front panel USB 20 Gbps port with support for PD fast charging.
• Supports: Fast charging up to 30W and USB Wattage Watcher
• Output: 5V/9V max. 3 A, 12 V max. 2.5A, 15V max. 2A
• Compatible with PD3.0
• Software functions
• ASUS-exclusive software
• Crate Armoury
• Creator Aura
• Aura Sync
• Fan Xpert 4 (with AI Cooling II)
• Energy Saving
• ASUS DriverHub
• ASUS GlideX
• USB Wattage Watcher
• Core TurboV
• TUF GAMING CPU-Z
• DTS audio processing
• Norton 360 for gamers (60-day free trial)
• WinRAR (40 Days Free Trial) AI Overclock Guide in BIOS UEFI ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey
• BIOS
• 256 Mb Flash ROM, UEFI AMI BIOS
• Manipulability
• WOL by PME, PXE

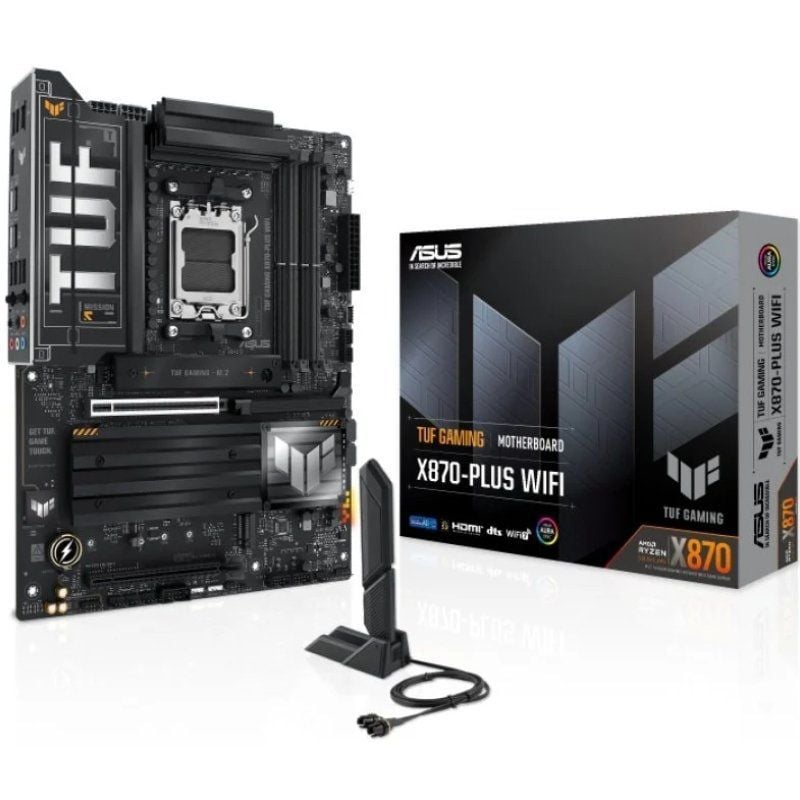

• Accessories
• Cables
• 2 SATA 6 Gb/s cables
• Misc
• 1 ASUS WiFi Q antenna
• 2 packs of M.2 erasers
• 1 pack of screws for M.2 SSD
• 1 TUF GAMING sticker
• Documentation
• Quick Start Guide
• Operating system
• Windows 11
• Form factor
• ATX form factor
• 12 inches x 9.6 inches (30.5 cm x 24.4 cm)
